Master-Data

The Master-Data Widget allows the user to display specific Data from Assets in Tables for both Asset-Views and Folder-Views

Requirements

To be able to define Meta-Data, your Asset has to be setup correctly first. It is required to have an Asset-Type containing multiple Aspect-Types.

It is mandatory that these Requirements are met!

How to setup

Getting started

You have to setup the Master-Data in the Asset-Manager-App, either by clicking the "Create Master-Data"-Button or by manually navigating to the Asset-Manager-App in your flyze.ecosystem. Here you need to locate the asset-types-Folder.

Asset-Manager

Step 1

Click the Node-Actions Button to create a new Asset under the asset-types-Folder

Select Add-Asset

Configure your Asset, and select flyze.type.asset as Type

Step 2

Switch to the List-Edit Mode

Select the Aspect Master Data in the Aspect-List

Switch to the Edit-Mode and click the Add new Data-Button

Fill in the relevant Data to configure a property for the Master-Data Stream

Note that the Aspect Name is the key of the linked Aspect-Type in the Asset-Type

Note that the Property Path is one of the defined properties of the linked Aspect-Type - To clarify: The Aspect-Type is the Type referenced in the Asset-Type above / the Aspect-Type referenced in the Add new Data-Modal.

Be sure to save or commit your changes

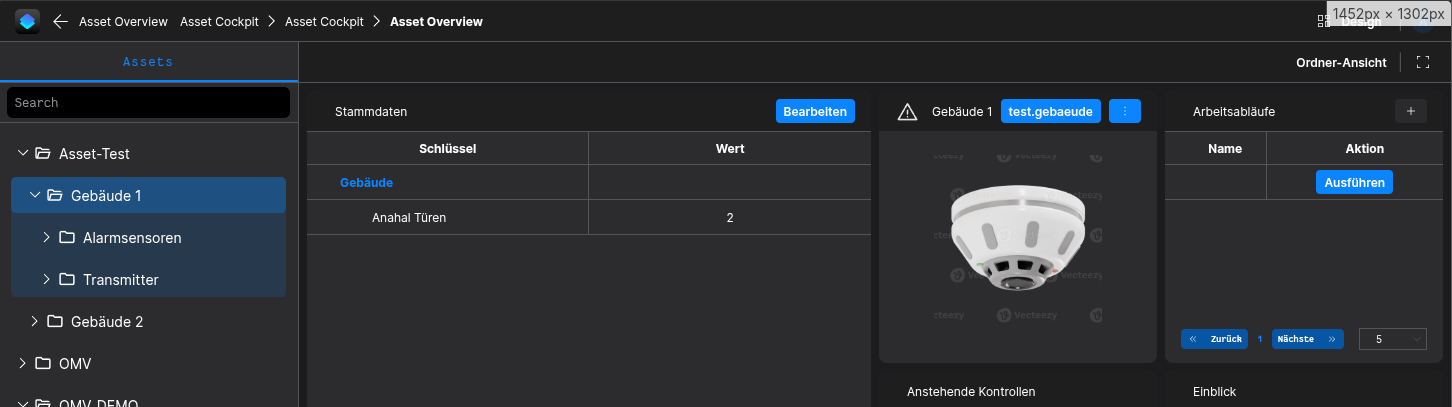

Result

The Master-Data should be displayed in both the Asset-View and Folder-View
